Automotive 75mm Leather Edge Folding Machine

Automotive 75mm Leather Edge Folding Machine

Brand Name:	Huazhuo
Model Number:	HZ-BF-1550
MOQ:	1 Set
Price:	Negotiation
Delivery Time:	60DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Item Name:

Automotive Interior Edge Folding Machine

Voltage:

380V/Customize

Controlling System:

PLC

Drive Mode:

Servo

Weight:

Deminisons:

L3400MM×W1885MM×H3600MM

Welding Time:

0.01-9.99SECOND

Speed:

75-90 Seconds/Piece

Working Stroke:

75MM-125MM

Usage:

Car Door Armrests, Front And Co-driver Side Trims, Upper Trim Panels, Instrument Cover Covering

Packaging Details:

Wooden case

Supply Ability:

500 SET/YEAR

Highlight:

Automotive 75mm Leather Edge Folding Machine

75mm Leather Edge Folding Machine Servo

Servo Edge Banding Machine 5T

Product Description

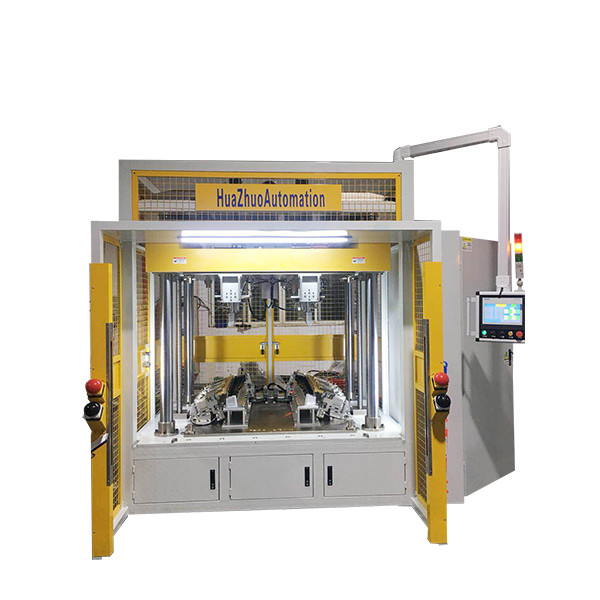

Automotive Interior Edge Folding Machine

Product Description

1.This equipment is suitable for leather wrapping and edging of automotive interior parts, alignment positioning, vacuum activation, and male mold forming.

2.The equipment has an independent temperature control system and cooling system, which can continuously provide a constant temperature for glue activation; the lower pressing device is driven by a servo motor for precise positioning; the mold can be quickly replaced.

3.The equipment rack consists of two parts, the lower rack is welded with high-quality A3 square tubes, and the upper rack is welded with A3 square tubes or overlapped with European standard aluminum profiles, with a beautiful appearance.

Technical Parameters:

Voltage:	380V	Welding Time:	0.01-9.99 Seconds
Controlling System:	PLC	Speed:	75-90 Seconds/Piece
Drive Mode:	Servo	Working stroke:	75MM-125MM
Weight:	5T	Deminisions:	L3400MM×W1885MM×H3600MM

Application Range:

Car door armrests, front and co-pilot side trims, upper trim panels and instrument cover wrapping

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support
