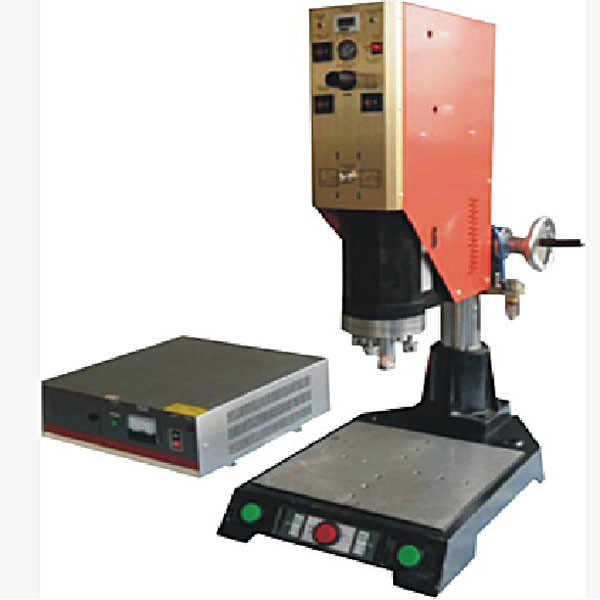

15khz Ultrasonic Welding Machine 2600W Sonic Welding Equipment

2600W Standard Ultrasonic Welder For Plastic Toys

Product Description:

1. Ultrasonic welding machine can lift and lower the fuselage. Mold adjustment is convenient and fast.

2. Ultrasonic welding machine frequency regulation and frequency automatic compensation circuit.

3. Ultrasonic welding machine gravity casting, CNC machine tool processing, high precision.

4. Ultrasonic welding machine CNC processing spherical vibrator fixed seat, fine tooth screw level micro move. Higher level adjustment accuracy.

Technical Parameters:


Application Range:

Car door armrests, front and co-pilot side trims, upper trim panels and instrument cover wrapping and toys.

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support

The principle of the intelligent ultrasonic welding machine is that the generator
generates 20KHz (or 15KHz) high-voltage and high-frequency signals. The signals are converted into high-frequency mechanical vibrations through the energy conversion system. The signals are applied to the plastic workpiece and pass through the surface of the workpiece and between the molecules. The friction of the workpiece increases the temperature transmitted to the interface. When the temperature reaches the melting point of the workpiece itself, the interface of the workpiece melts rapidly, and then fills the gap between the interfaces. When the vibration stops, the workpiece is cooled and shaped under a certain pressure at the same time. A perfect welding is achieved. The new 15KHz ultrasonic plastic welding machine has a unique effect on welding softer PE and PP materials, as well as plastic welding with super large diameter and long length.
