Hot Riveting Welding Machine
Created with Pixso. PPO Automatic Hot Riveting Welding Machine PSO Hot Plate Welding

PPO Automatic Hot Riveting Welding Machine PSO Hot Plate Welding

Brand Name: HuaZhuo
Model Number: HZ-QDRM1280
MOQ: Negotiation
Price: Negotiation
Delivery Time: 45days
Payment Terms: T/T, , L/C
Detail Information
Place of Origin:
Suzhou China
Item Name:
Automatic Hot Riveting Welding Machine
Application Range:
Medical Plastic、Car Door Panels、Car Trim Parts、Dashboard
Voltage:
380V/Customize
Welding Speed:
45-90 Seconds
Controlling System:
PLC
Drive Mode:
Servo
Weight:
4T
Deminisons:
L1992MM*W1127MM*H2355MM
Plastic Processed:
PPO/PP/PSO/PS/PPS/PET/PE/PC
Packaging Details:
Packing by Wooden case, shipping by sea
Supply Ability:
5000/Year
Highlight:

PPO Automatic Hot Riveting Welding Machine

,

Hot plate Welding Machine PSO

,

PSO Hot Plate Welding Machine

Product Description

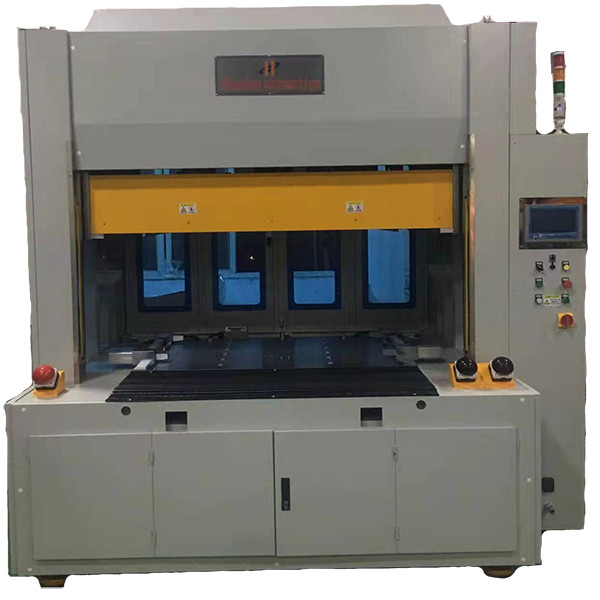

Automatic Hot Riveting Welding Machine



Product Description:



1. The equipment is divided into one station for taking and placing products + one station for welding. The movement between stations adopts rodless cylinder as power.


2. The up and down movement of the die adopts the power source of cylinder welding, and 4 guide posts + linear bearings are used as the sliding medium to ensure the smooth movement.


3. The equipment frame is composed of two parts. The lower frame is welded with high-quality A3 square pipe, and the upper frame is welded with stainless steel A3 square tube with exquisite appearance.


4. Temperature control adopts single point heating system and PLC programmable microcomputer control.
In the system, the man-machine interface window adjusts the welding parameters to ensure that the temperature of each welding position is constant, the welding effect is the best.



Technical Parameters:



Item Name Automatic Hot Riveting Welding Machine
Application Range Medical Plastic,Car Door Panels,Car Trim Parts,Dashboard
Voltage 380V/Customize
Weight 4T
Controlling System PLC
Drive Mode Servo
Welding Area 1200mm2*900mm2
Deminisons L1992MM*W1127MM*H2355MM


Application Range:



Electronic industry: Earphone/charger/power adapter



Medical industry: Breathing filter/medical box



Auto industry: Light/Air outlet/Car door



After-sales Service Provided:



1.One-year warranty service



2.Online support, Video technical support
