60HZ Auto Body Welding Hot Plate Welding Equipment 0.6MPA For Glove Boxes

Brand Name:	HuaZhuo
Model Number:	HZ-RB6550S
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	45days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Suzhou China

Item Name:

Platic Basin Hot Plate Welding Machine

Voltage:

380V/Customize

Thermal Power:

3-6KW

Pressure:

0.6MPA

Welding Table Area:

650MM×500MM

Frequency:

50/60HZ

Gas Demand:

4M3/MIN

Deminisons:

（L）1565×（W）1595×（H）2545(MM)

Application Range:

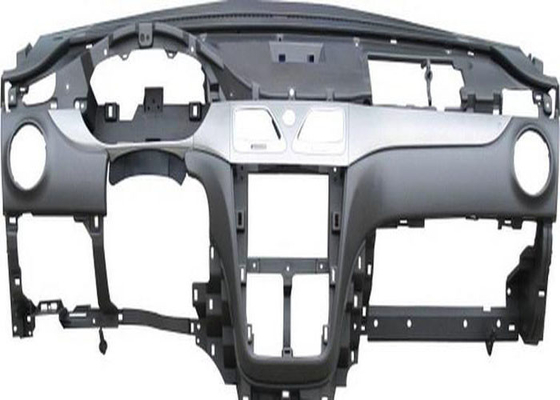

Car Light、glove Boxes、water Tanks、dust Buckets 、washing Machine Balance Rings And Home Appliance Parts

Packaging Details:

Packing by Wooden case, shipping by sea

Supply Ability:

5000/Year

Highlight:

60HZ Auto Body Welding Hot Plate

Hot Plate Welding Equipment 0.6MPA

Hot Plate Welding Equipment 60HZ

Product Description

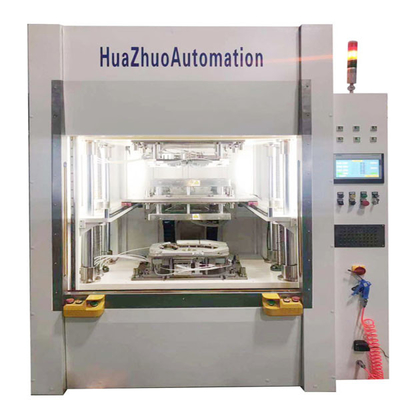

Platic Basin Hot Plate Welding Machine

Product Description:

1. Can be applied to different sizes of the workpiece, no area restrictions.

2. Any welding surface any be applied. No special requirements.

3. Welding surface can allow plastic balance compensation, welding strength is guaranteed.

4. In accordance with the needs of various materials, adjustable welding procedures.

5. The fixture is fixed to the corresponding upper and lower platen position.

6. In the upper and lower pressure plate under the action of the positioning system, the hot plate welding can be in the high speed with no impact to the plastic pieces.

Technical Parameters:

Item Name	Platic Basin Hot Plate Welding Machine
Voltage	380V/Customize
Thermal Power	3-6KW
Hot Plate Advance	500MM
and Retreat Process	500MM
Deminisons	(L)1565×(W)1595×(H)2545(MM)
Application Range	Car light,glove boxes,water tanks,dust buckets ,washing machine balance rings and home appliance parts
Pressure	0.6MPA
Frequency	50/60HZ
Frequency	50/60HZ
Gas Demand	4M3/MIN
Welding Table Area	650MM×500MM
