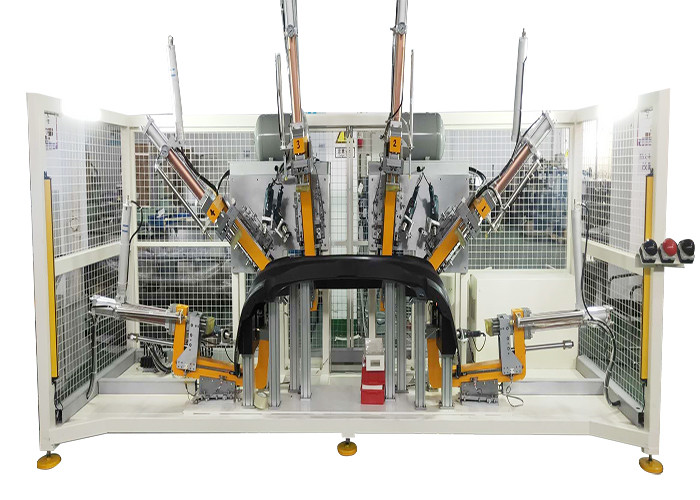

Servo Automobile Welding Machine 3T 850mm Vehicle Bumper Punching Equipment

Servo Automobile Welding Machine 3T 850mm Vehicle Bumper Punching Equipment

Brand Name:	HuaZhuo
Model Number:	HZ-CSBCKHJ
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	45days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Suzhou China

Item Name:

Automobile Plastic Bumper Welding Machine For Vehicle Bumper Punching And Welding

Application Range:

Front And Rear Bumpers Of Various Models

Voltage:

380V/Customize

Frequency:

60HZ

Drive Mode:

Servo

Power:

5KW

Pressure:

0.6MPA

Maximum Ambient Humidity:

5-80

Controlling System:

PLC

Deminisons:

（L）4398×（W）855×（H）1898(MM)

Packaging Details:

Packing by Wooden case，Shipping by sea

Supply Ability:

5000/Year

Highlight:

Servo Automobile Welding Machine 3T

Vehicle Bumper Automobile Welding Machine 850mm

850mm Vehicle Bumper Punching Machine

Product Description

Automobile Plastic Bumper Welding Machine For Vehicle Bumper Punching And Welding

Product Description:

1.The equipment adopts high strength steel as the frame, three ultrasonic welding head at the same time pressure welding, a single welding head split type control, a single welding head can adjust the position (three axis adjustment), using the welding tool sliding rail structure, the cylinder from the place area movement to the welding area. The height of the upper die can be adjusted by the limit screw and controlled by PLC man-machine interface. The side-pull structure is convenient for debugging and installation with high accuracy. The machine is easy to debug and stable in performance. The driving mechanism of the equipment can be divided into manual operation and automatic operation. Manual operation is a single action, which is mainly used for the debugging of the mechanism and mold. In PLC computer touch screen into the main operation screen, according to the welding requirements of the workpiece welding time, curing time and delay time are set.

2. The computer touch screen automatically determines, close the moving door (proximity switch indicator light) or safety grating, press the start switch (blue) button at the same time, the process is controlled by PLC to achieve automatic control.

3. Start the switch upper die to weld the workpiece down.Production for automatic, automatic control system using programmable controller (PLC) to control the continuous movement of the cylinder. Easy operation, reliable performance, compact size, improve production efficiency and quality.

Technical Parameters:

Item Name	Automobile Plastic Bumper Welding Machine For Vehicle Bumper Punching And Welding
Voltage	380V/Customize
Maximum ambient humidity	5-80
Power	5KW
Application Range	Front and rear bumpers of various models
Deminisons	(L)4398×(W)855×(H)1898(MM)
Drive Mode	Servo
Controlling System	PLC
Frequency	50HZ
Pressure	0.6MPA

Application Range:

Automative front and rear bumpers.

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support
