Name: PA66 Servo Hot Plate Welding Machine 10KW Infrared Welding Machine
Brand: Suzhou Huazhuo automation equipment Co., Ltd
SKU: HZ-WSRB30
Availability: InStock

PA66 Servo Hot Plate Welding Machine 10KW Infrared Welding Machine

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Item Name: Infrared Horizontal Hot Plate Welding Machine

Application Range: PP, ABS, PA66, PE, Pet, PBT, Ect.

Drive Mode: Servo

Voltage: 380V/Customize

Power: 10KW

Pressure: 0.6MPA

Welding Area: 330mm×150mm

Frequency: 50HZ

Deminisons: （L）2185×（W）1073×（H）2100(MM)

Highlight:

PA66 Servo Hot Plate Welding Machine

Servo Hot Plate Welding Machine 10KW

10KW Infrared Welding Machine

Basic Infomation

Place of Origin: Suzhou China

Brand Name: HuaZhuo

Model Number: HZ-WSRB30

Payment & Shipping Terms

Packaging Details: Packing by Wooden case, shipping by sea

Delivery Time: 45days

Payment Terms: T/T, L/C

Supply Ability: 5000/Year

Gallery

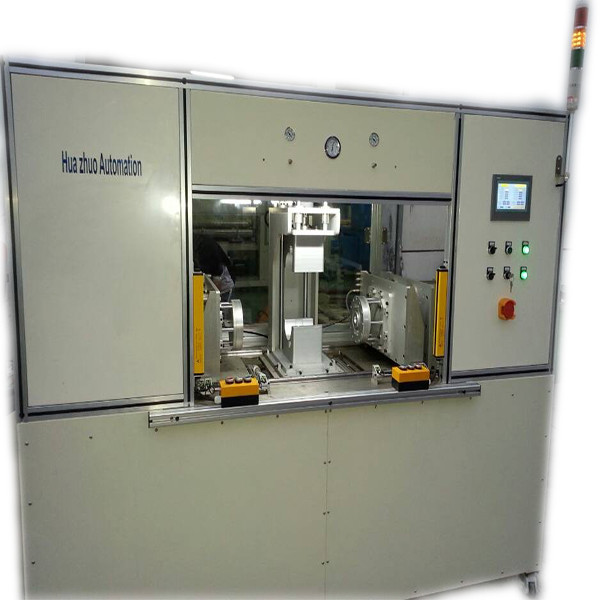

PA66 Servo Hot Plate Welding Machine 10KW Infrared Welding Machine

Product Description

Infrared Horizontal Hot Plate Welding Machine

Product Description:

1. The welding machine adopte servo drive, and each station can act separately at the same time.

2. Welding effect with high strength and good performance.

3. Automatic assembly line control technology is adopted to make the welding operation easy and simple.

4. The moving parts adopt linear slide rail, servo and cylinder to make the movement stable and reliable
More accurate.

5. No pollution, no waste, low noise and more environmentally friendly work.

Technical Parameters:

Item Name	Infrared Horizontal Hot Plate Welding Machine
Voltage	380V/Customize
Power	10KW
Hot Plate Advance and Retreat Process	500MM
Deminisons	(L)2185×(W)1073×(H)2100(MM)
Application Range	PP, ABS, PA66, PE, Pet, PBT, Ect.
Pressure	0.6MPA
Frequency	50HZ
Gas Demand	4M3/MIN
Welding Area	330mm×150mm

Application Range:

Used in the medical industry, automotive industry, electronic industry, household appliances, woven apparel, office supplies, packing industry, home appliance parts and so on.

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support
