Pneumatic PLC Hot Plate Welding Equipment PPS Thermal Welder For Dashboard

Brand Name:	HuaZhuo
Model Number:	HZ-QDRM1280
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	45days
Payment Terms:	T/T, , L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Suzhou China

Item Name:

Automobile C Column Pneumatic Thermal Riveting Welding Machine

Application Range:

Medical Plastic、Car Door Panels、Car Trim Parts、Dashboard

Voltage:

380V/Customize

Welding Speed:

45-90 Seconds

Controlling System:

PLC

Drive Mode:

Servo

Weight:

Deminisons:

L1992MM*W1127MM*H2355MM

Plastic Processed:

PPO/PP/PSO/PS/PPS/PET/PE/PC

Packaging Details:

Packing by Wooden case, shipping by sea

Supply Ability:

5000/Year

Highlight:

Pneumatic PLC Hot Plate Welding Equipment

Hot Plate Welding Equipment PPS

PPS Thermal Welder

Product Description

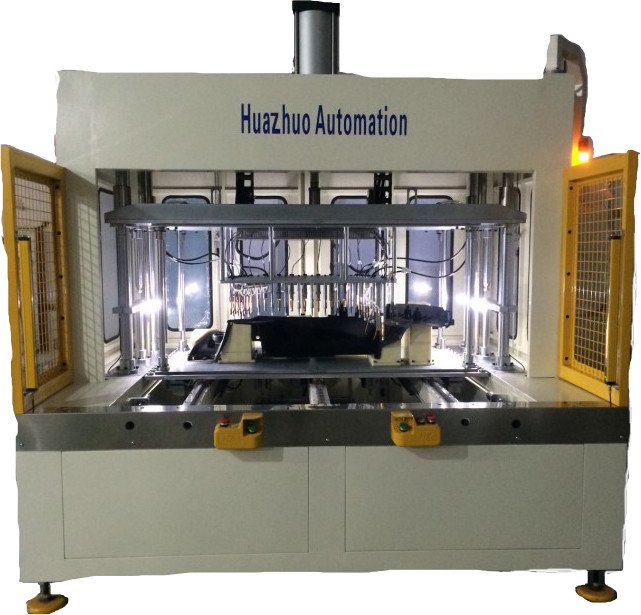

Automobile C Column Pneumatic Thermal Riveting Welding Machine

Product Description:

1. The equipment is divided into one station for taking and placing products + one station for welding. The movement between stations adopts rodless cylinder as power.

2. The up and down movement of the die adopts the power source of cylinder welding, and 4 guide posts + linear bearings are used as the sliding medium to ensure the smooth movement.

3. The equipment frame is composed of two parts. The lower frame is welded with high-quality A3 square pipe, and the upper frame is welded with stainless steel A3 square tube with exquisite appearance.

4. Temperature control adopts single point heating system and PLC programmable microcomputer control.
In the system, the man-machine interface window adjusts the welding parameters to ensure that the temperature of each welding position is constant, the welding effect is the best.

Technical Parameters:

Item Name	Automobile C Column Pneumatic Thermal Riveting Welding Machine
Application Range	Medical Plastic,Car Door Panels,Car Trim Parts,Dashboard
Voltage	380V/Customize
Weight	4T
Controlling System	PLC
Drive Mode	Servo
Welding Area	1200mm2*900mm2
Deminisons	L1992MMW1127MMH2355MM

Application Range:

Electronic industry: Earphone/charger/power adapter

Medical industry: Breathing filter/medical box

Auto industry: Light/Air outlet/Car door

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support
