PLC Ultrasonic Welding Automation 75MM Ultrasonic Plastic Spot Welder

PLC Ultrasonic Welding Automation 75MM Ultrasonic Plastic Spot Welder

Brand Name:	HuaZhuo
Model Number:	HZ-CSB1520
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	45days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Suzhou China

Item Name:

Ultrasonic Welding Machine For Automobile Instrument Panel

Application Range:

Automotive Trim, Automotive Interior Parts, Home Appliance Parts, Toys

Voltage:

380V/Customize

Frequency:

35KHZ

Weight:

Welding Time:

0.01-9.99 Seconds

Working Stroke:

75MM-125MM

Drive Mode:

Servo

Welding Material:

Thermoplastic

Deminisons:

L1000MM×W885MM×H2105MM

Packaging Details:

Packing by Wooden case，Shipping by sea

Supply Ability:

5000/Year

Highlight:

PLC Ultrasonic Welding Automation

Ultrasonic Welding Automation 75MM

Automation Ultrasonic Plastic Spot Welder

Product Description

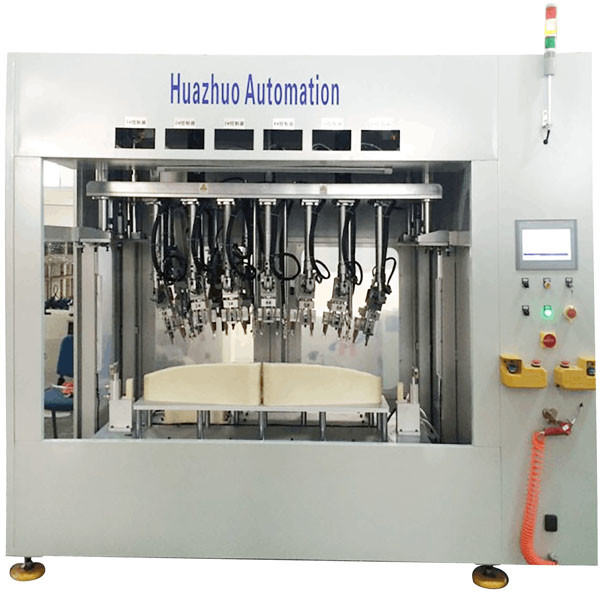

Ultrasonic Welding Machine For Automobile Instrument Panel

Product Description:

1. The ultrasonic welding mchine adopt imported 35KC ultrasonic welding.

2. The position of front, back, left, right, up and down of each welding can be adjusted, and the mold adjustment is convenient.

3. The ultrasonic welding machine can lift the body and adjust the mold conveniently and quickly.

4. Ultrasonic welding machine CNC machining spherical vibrator fixing seat, fine tooth screw horizontal fine adjustment. Horizontal adjustment accuracy is higher.

Technical Parameters:

Item Name:	Ultrasonic Welding Machine For Automobile Instrument Panel
Frequency:	35KHZ
Controlling System:	PLC
Drive Mode:	Servo
Weight:	4T
Voltage:	380V/Customize
Welding Time:	0.01-9.99 Seconds
Working stroke:	75MM-125MM
Deminisions:	L3400MM×W1885MM×H3600MM
Application Range	Automotive trim, automotive interior parts, home appliance parts, toys
