Name: Servo 4T Automatic Ultrasonic Welding Machine Multi Head 20KHZ Supersonic Welding
Brand: Suzhou Huazhuo automation equipment Co., Ltd
SKU: HZ-CSB1520
Availability: InStock

Servo 4T Automatic Ultrasonic Welding Machine Multi Head 20KHZ Supersonic Welding

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Item Name: Servo Ultrasonic Welding Machine For Vehicle Plastic Parts

Application Range: Automotive Trim, Automotive Interior Parts, Home Appliance Parts, Toys

Voltage: 380V/Customize

Frequency: 20KHZ

Weight: 4T

Welding Time: 0.01-9.99 Seconds

Working Stroke: 75MM-125MM

Drive Mode: Servo

Welding Material: Thermoplastic

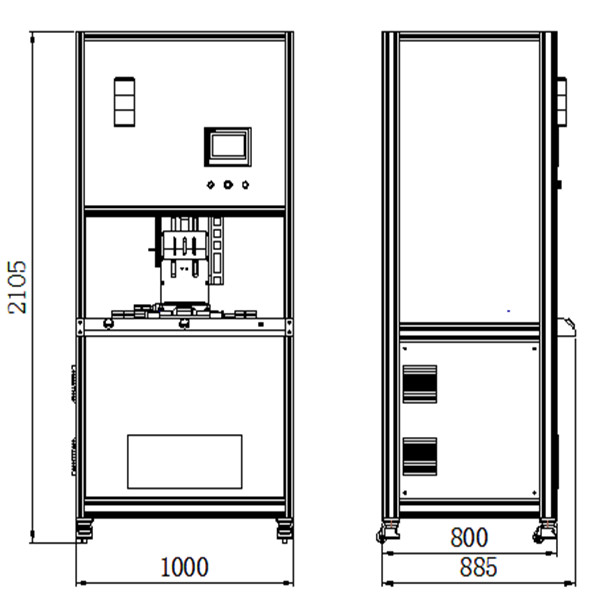

Deminisons: L1000mm×W885mm×H2105mm

Highlight:

Servo 4T Automatic Ultrasonic Welding Machine Multi Head

Automatic Ultrasonic Welding Machine 20KHZ

Multi Head 20KHZ Supersonic Welding

Basic Infomation

Place of Origin: Suzhou China

Brand Name: HuaZhuo

Model Number: HZ-CSB1520

Payment & Shipping Terms

Packaging Details: Packing by Wooden case，Shipping by sea

Delivery Time: 45days

Payment Terms: T/T

Supply Ability: 5000/Year

Gallery

Servo 4T Automatic Ultrasonic Welding Machine Multi Head 20KHZ Supersonic Welding

Product Description

Ultrasonic Welding Machine For Automobile Instrument Panel

Product Description:

1. Aluminum profile frame structure is adopted, with compact appearance.

2. The servo motor is used as the driving force with high precision.

3. The ultrasonic welding machine can lift the machine body, and the mold adjustment is convenient and fast.

4. The ultrasonic welding machine CNC processes the spherical vibrator fixing seat, and the fine tooth screw is horizontally micro
The accuracy of horizontal adjustment is higher.

Technical Parameters:

Item Name:	Servo Ultrasonic Welding Machine For Vehicle Plastic Parts
Frequency:	20KHZ
Controlling System:	PLC
Drive Mode:	Servo
Weight:	4T
Voltage:	380V/Customize
Welding Time:	0.01-9.99 Seconds
Working stroke:	75MM-125MM
Deminisions:	L3400MM×W1885MM×H3600MM
Application Range	Automotive trim, automotive interior parts, home appliance parts, toys

Application Range:

Automotive trim, automotive interior parts, home appliance parts, toys

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support

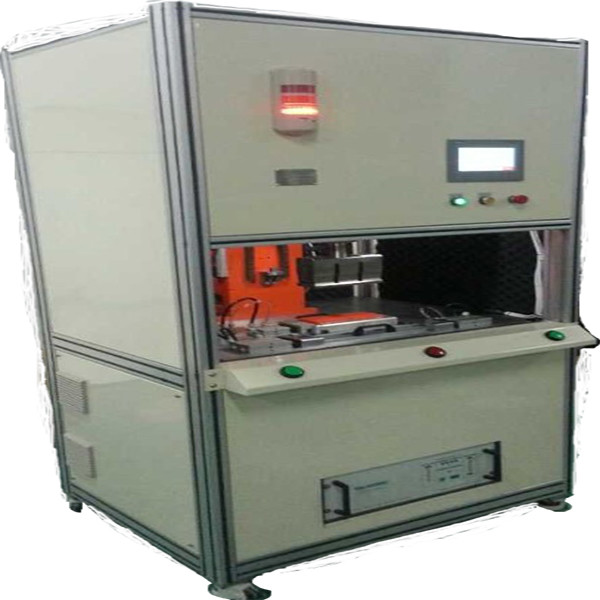

Servo 4T Automatic Ultrasonic Welding Machine Multi Head 20KHZ Supersonic Welding 0
