Name: Automatic Robot Welding And Assembly Production Line For Automotive Plastic Trim
Brand: Suzhou Huazhuo automation equipment Co., Ltd
SKU: HZ-2206-F009
Availability: InStock

Automatic Robot Welding And Assembly Production Line For Automotive Plastic Trim

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Item Name: Automatic Robot Welding And Assembly Production Line For Automotive Plastic Trim

Voltage: AC380V

Application Range: B-pillar,Side Panel Front Left And Front Right，Loading Sill Trim，Bezel Loading Sill BEV，Storage Compartment Luggage Compartment，Hinge Tailgate Left/right

Capacity: 22KW

Welding Time: 60s

Controlling System: PLC

Drive Mode: Servo

Frequency: 50/60HZ

Dimension: 5800*5100*2000mm

Weight: 8T

Highlight:

PLC 10mm/S Automated Welding Systems

Automated Welding Systems 380V

380V Car Bumper Plastic Welding Machine

Basic Infomation

Place of Origin: Suzhou China

Brand Name: HuaZhuo

Model Number: HZ-2206-F009

Payment & Shipping Terms

Packaging Details: Packing by Wooden case，Shipping by sea

Delivery Time: 90days

Payment Terms: T/T

Supply Ability: 5000/Year

Gallery

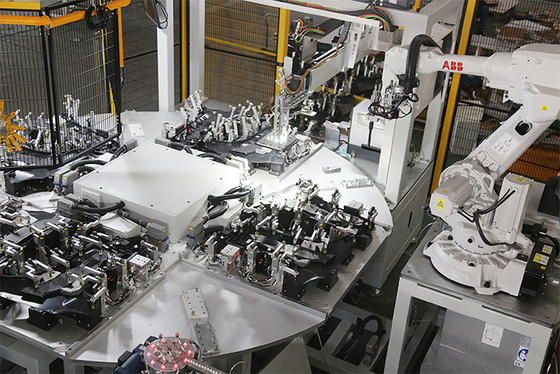

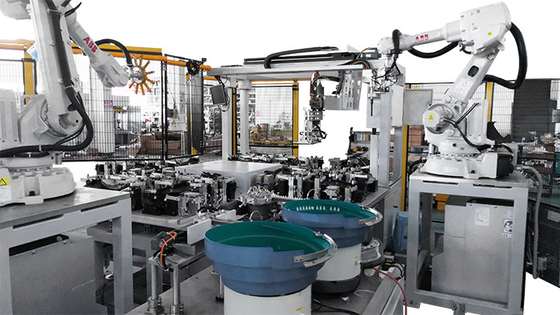

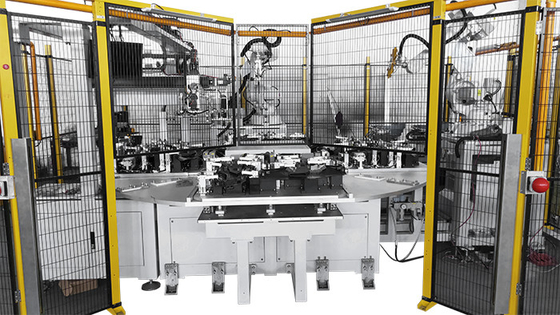

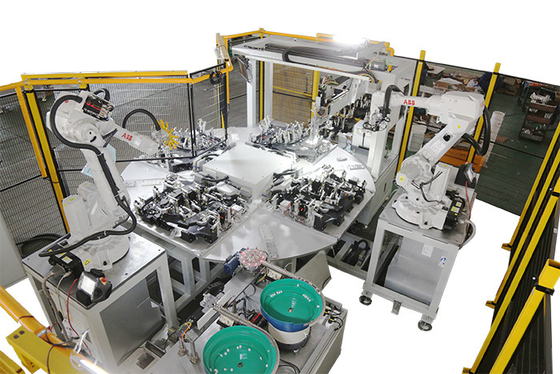

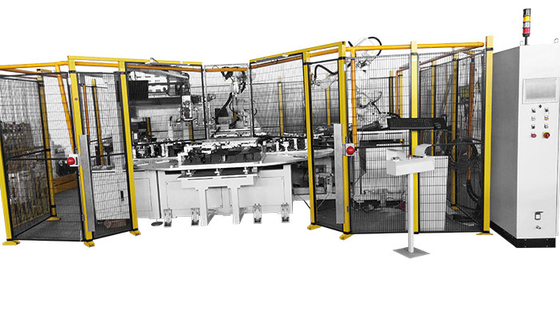

Automatic Robot Welding And Assembly Production Line For Automotive Plastic Trim

Product Description

Automatic Robot Welding And Assembly Production Line For Automotive Plastic Trim

Product Description:

1.The three-axis manipulator of the injection molding machine takes out the product, moves it to the designated position and pastes the label

2.The six axis robot places the buckle in the installation jig

3.Three axis manipulator puts the product into the positioning jig

4.Clip installation fixture acts to install the buckle into the product

5.Vision system detect clips and solder joints

6.The three-axis manipulator takes out the product and puts it into the belt line

Technical Parameters:

Item Name	Automatic Robot Welding And Assembly Production Line For Automotive Plastic Trim
Capacity	22KW
Level	Automatic
Voltage	380V/Customize
Time	60 s
Frequency	50/60HZ
Application Range	B-pillar,Side panel front left and front right,Loading sill trim,Bezel loading sill BEV,Storage compartment luggage compartment,Hinge tailgate left/right
Controlling System	PLC
Drive mode	Servo

Application Range:

Car door armrests, front and co-pilot side trims, upper trim panels and other metal welding work.

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support

Certificate:CE
