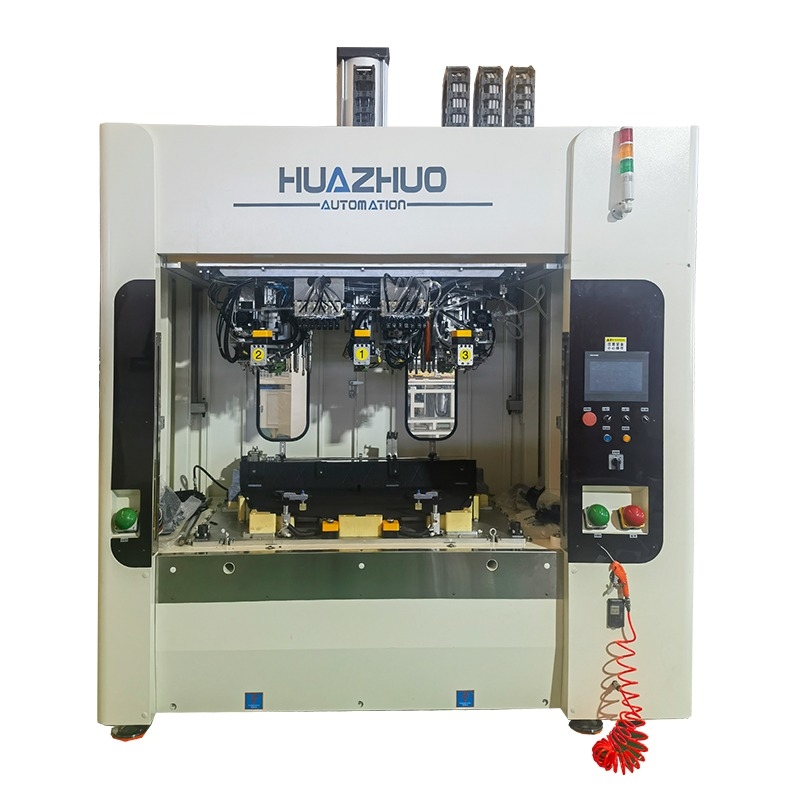

High Efficiency Precision Automotive Plastic Component Hot Riveting Automated Welding Machine

Product Overview

Huazhuo’s High-Efficiency Precision Hot Riveting Machine delivers industry-leading automation for bonding automotive plastic components (e.g., grilles, lamp housings, console panels). Integrating servo-controlled thermal management and robotic precision, it eliminates manual handling while achieving >99% weld consistency.

Key Features

1. Multi-Point Synchronized Riveting

• ±0.1mm positional accuracy
• Simultaneously process 8-32 rivet points per cycle
• Suitable for various plastic material (PP, ABS, PC+ABS)

2. Zero-Defect Production

•  Real-time force & depth monitoring
•  Vision system verifies melt pool formation
•  Poka-yoke error lockout

3. Flexible Customization

•  Modular design adapts to parts (5x5cm to 150x80cm)
•  Quick-change fixtures (<15min switchover)

4. Industry 4.0 Connectivity

•  Siemens PLC + 10” HMI with OPC-UA protocol
•  Outputs: Cycle analytics, OEE, predictive maintenance alerts

Application Scenarios

Ideal for Tier-1/Tier-2 automotive suppliers producing:

•  Exterior: Grilles, emblem mounts, bumper brackets
•  Interior: HVAC vents, steering column covers, trim panels
•  E-Mobility: Battery tray covers, charging port flaps

Technical Specifications

Why Choose Huazhuo?

•  20,000m² R&D-Production Base (Suzhou, China)
•  12+ Years in automotive non-standard automation
•  Proven Deliveries: systems for OEMs

After-Sales Service

• 1-Year Quality Warranty
• Remote Technical Support (via video and software)
• On-site Commissioning & Operator Training (optional)
• Quick Replacement of Critical Parts
