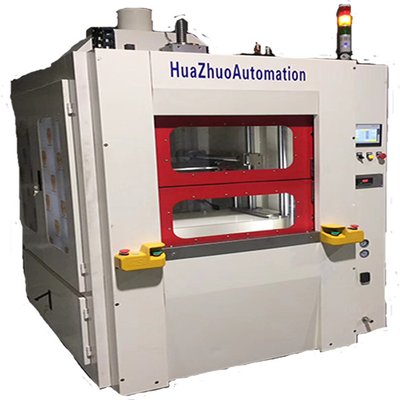

50HZ Servo Hot Plate Welding Machine 10KW Ir Welding For LED Light Shell

Brand Name:	HuaZhuo
Model Number:	HZ-WSRB30
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	45days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Suzhou China

Item Name:

Hot Plate Plastic Welding Machine For LED Light Shell

Application Range:

PP, ABS, PA66, PE, Pet, PBT, Ect.

Drive Mode:

Servo

Voltage:

380V/Customize

Power:

10KW

Pressure:

0.6MPA

Welding Area:

330mm×150mm

Frequency:

50HZ

Deminisons:

（L）2185×（W）1073×（H）2100(MM)

Packaging Details:

Packing by Wooden case, shipping by sea

Supply Ability:

5000/Year

Highlight:

50HZ Servo Hot Plate Welding Machine

Servo Hot Plate Welding Machine 10KW

10KW Ir Welding Machine

Product Description

Hot Plate Plastic Welding Machine For LED Light Shell

Product Description:

1.The frame adopts welding structure, and the bottom is equipped with a foot with adjustable horizontal height to adjust the level of the machine.

2.All machine side plates are made of A3 cold-rolled sheet.

3.The operator is protected by a safety light shed during automatic welding operation.

4.The working table is made of 45# steel, with surface treatment and smooth surface, No deformation, long service life, manual mold change and quick positioning.

Technical Parameters:

Item Name	Hot Plate Plastic Welding Machine For LED Light Shell
Voltage	380V/Customize
Power	10KW
Hot Plate Advance and Retreat Process	500MM
Deminisons	(L)2185×(W)1073×(H)2100(MM)
Application Range	PP, ABS, PA66, PE, Pet, PBT, Ect.
Pressure	0.6MPA
Frequency	50HZ
Gas Demand	4M3/MIN
Welding Area	330mm×150mm

Application Range:

Used in the medical industry, automotive industry, electronic industry, household appliances, woven apparel, office supplies, packing industry, home appliance parts and so on.

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support
