Pallet Welding Machine
Created with Pixso. 380V Plastic Pallet Hot Plate Welding Machine 0.6MPa Pallet Making Equipment
380V Plastic Pallet Hot Plate Welding Machine 0.6MPa Pallet Making Equipment
  • name
  • name

380V Plastic Pallet Hot Plate Welding Machine 0.6MPa Pallet Making Equipment

Brand Name: HuaZhuo
Model Number: HZ-ZBFB
MOQ: Negotiation
Price: Negotiation
Delivery Time: 45days
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Suzhou China
Item Name:
380V Servo Ultrasonic Pallet Welding Machine
Voltage:
380V/Customize
Gas Demand:
4m3/MIN
Advantage:
High Speed Stability
Weight:
4.0T
Heating Power:
16KW
Pressure:
0.6MPa
Ambient Temperature:
-5℃-35℃
Deminisons:
L6150mm×W4075mm×H2505mm
Application Range:
Anti Slip Plastic Pallet Soldering
Packaging Details:
Packing by Wooden case，Shipping by sea
Supply Ability:
5000/Year
Highlight:

380V Plastic Pallet Hot Plate Welding Machine

,

Plastic Pallet Hot Plate Welding Machine 0.6MPa

,

0.6MPa Pallet Making Machine

Product Description

380V Servo Ultrasonic Pallet Welding Machine



Product Description:



1. The machine adopts hydraulic system to accurately control the up and down movement of cold plate and the passage of hot plate The forward and reverse rotation of the servo motor drives the front and rear movement.



2. The workpiece is moved to the welding position through the roller and fixed by clamping.



3. The upper mold has the function of automatic deviation correction, and can realize the function of automatic clamping and adsorption at the same time.



4. The heating of hot plate is divided into heating hot plate and infrared radiation heating.



5. The pallet can realize two operation modes: single machine welding and assembly line welding.



Technical Parameters:



Item Name 380V Servo Ultrasonic Pallet Welding Machine
Voltage 380V/Customize
Application Range Anti Slip Plastic Pallet Soldering
Gas Demand 4m3/MIN
Weight 4.0T

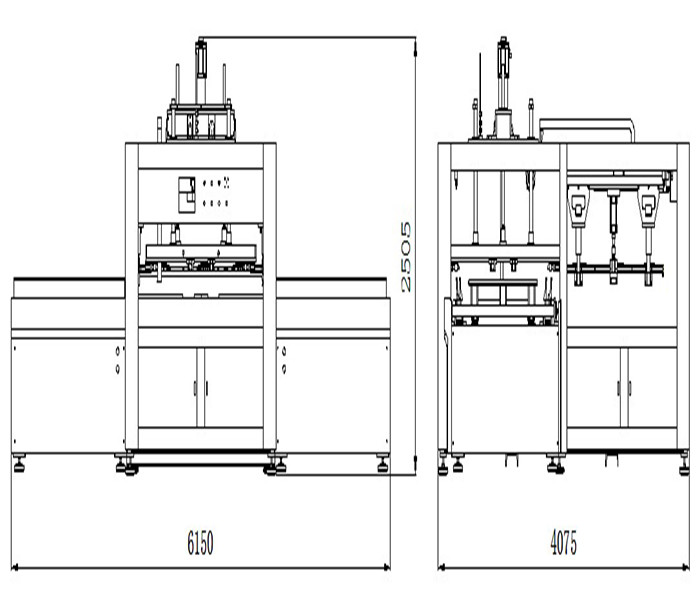

Deminisons L6150mm×W4075mm×H2505mm
Power 24KW
Heating Power 16KW
Pressure 0.6MPa
Ambient Temperature -5℃-35℃


Application Range:



Plastic pallet 1200x1000, 1100x1100, 1200x800mm





After-sales Service Provided:



1.One-year warranty service



2.Online support, Video technical support

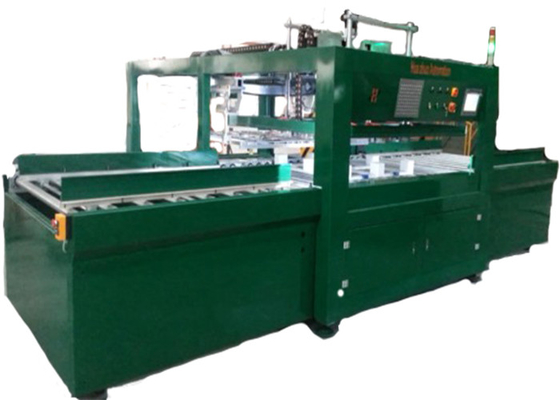

380V Plastic Pallet Hot Plate Welding Machine 0.6MPa Pallet Making Equipment 0

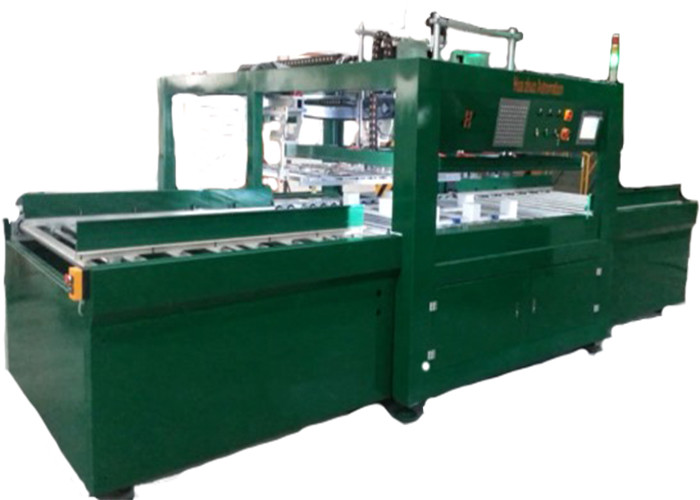

380V Plastic Pallet Hot Plate Welding Machine 0.6MPa Pallet Making Equipment 1380V Plastic Pallet Hot Plate Welding Machine 0.6MPa Pallet Making Equipment 2
