Servo Ultrasonic Pallet Welding Machine 16KW Welding Pallet

Brand Name:	HuaZhuo
Model Number:	HZ-ZBFB
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	45days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Suzhou China

Item Name:

380V Servo Ultrasonic Pallet Welding Machine

Voltage:

380V/Customize

Gas Demand:

4m3/MIN

Advantage:

High Speed Stability

Weight:

4.0T

Heating Power:

16KW

Pressure:

0.6MPa

Ambient Temperature:

-5℃-35℃

Deminisons:

（L）6880×（W）3160×（H）2075(MM)

Application Range:

Anti Slip Plastic Pallet Soldering

Packaging Details:

Packing by Wooden case，Shipping by sea

Supply Ability:

5000/Year

Highlight:

Pallet Welding Machine 16KW

Ultrasonic Pallet Welding Machine

16KW Welding Pallet

Product Description

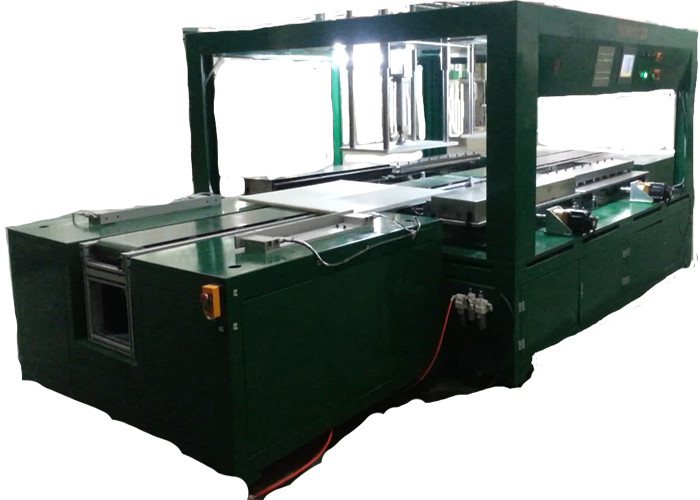

380V Servo Ultrasonic Pallet Welding Machine

Product Description:

1. The machine adopts hydraulic system to accurately control the up and down movement of cold plate and the passage of hot plate The forward and reverse rotation of the servo motor drives the front and rear movement.

2. The workpiece is moved to the welding position through the roller and fixed by clamping.

3. The upper mold has the function of automatic deviation correction, and can realize the function of automatic clamping and adsorption at the same time.

4. The heating of hot plate is divided into heating hot plate and infrared radiation heating.

5. The pallet can realize two operation modes: single machine welding and assembly line welding.

Technical Parameters:

Item Name	380V Servo Ultrasonic Pallet Welding Machine
Voltage	380V/Customize
Application Range	Anti Slip Plastic Pallet Soldering
Gas Demand	4m3/MIN
Weight	4.0T

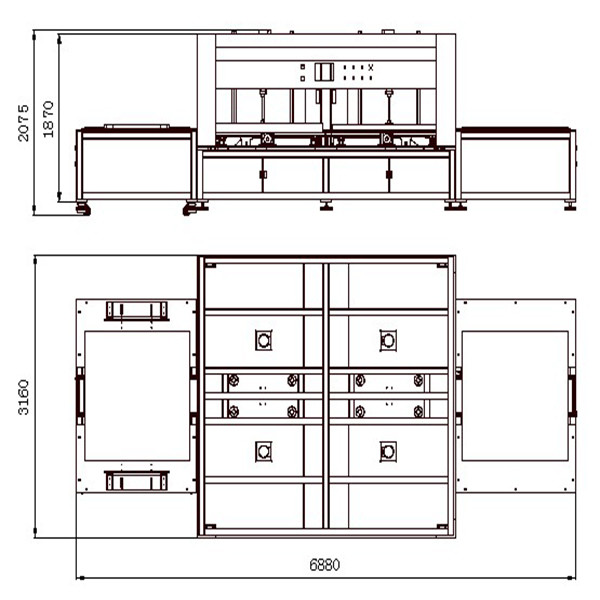

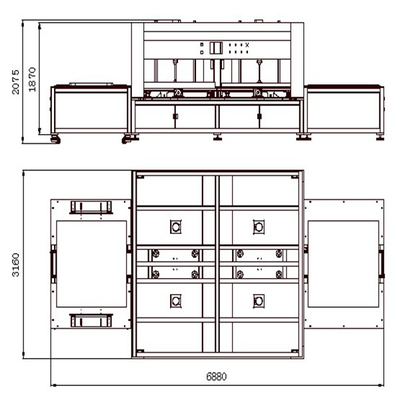

Deminisons	(L)6880×(W)3160×(H)2075(MM)
Power	24KW
Heating Power	16KW
Pressure	0.6MPa
Ambient Temperature	-5℃-35℃

Application Range:

Plastic pallet 1200x1000, 1100x1100, 1200x800mm

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support
