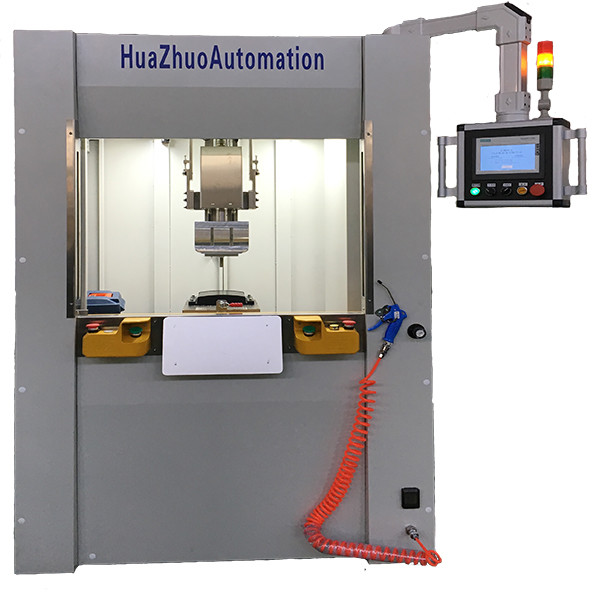

PBT Infrared Welding Machine 5000W Plastic Hot Plate Welding Machine

Detail Information

Place of Origin:

Suzhou China

Item Name:

Servo Motor Leather Welding Machine

Application Range:

PP, ABS, PA66, PE, Pet, PBT, Ect.

Drive Mode:

Servo

Voltage:

380V/Customize

Thermal Power:

3-6KW

Pressure:

0.6MPA

Welding Area:

1200mm2*900mm2

Frequency:

50/60HZ

Deminisons:

（L）1565×（W）1595×（H）2545(MM)

Packaging Details:

Packing by Wooden case, shipping by sea

Supply Ability:

5000/Year

Highlight:

PBT Infrared Welding Machine

Product Description

Servo Motor Leather Welding Machine

Product Description:

1. PLC and touch-screen control system, easy operation, safety, using reliable.

2. Digital temperature control function, welding temperature stability.

3. With linear Guide , high-precision molds, guarantes product quality .

4. Good watertight, airtight welding results after welding .

5. large or irregular workpieces welding, it'svery easy.

6.Just change the mold , it could be used for different producs welding.

Technical Parameters:

Item Name	Servo Motor Leather Welding Machine
Voltage	380V/Customize
Thermal Power	3-6KW
Hot Plate Advance and Retreat Process	500MM
Deminisons	(L)1565×(W)1595×(H)2545(MM)
Application Range	PP, ABS, PA66, PE, Pet, PBT, Ect.
Pressure	0.6MPA
Frequency	50/60HZ
Gas Demand	4M3/MIN
Welding Area	400*600mm
