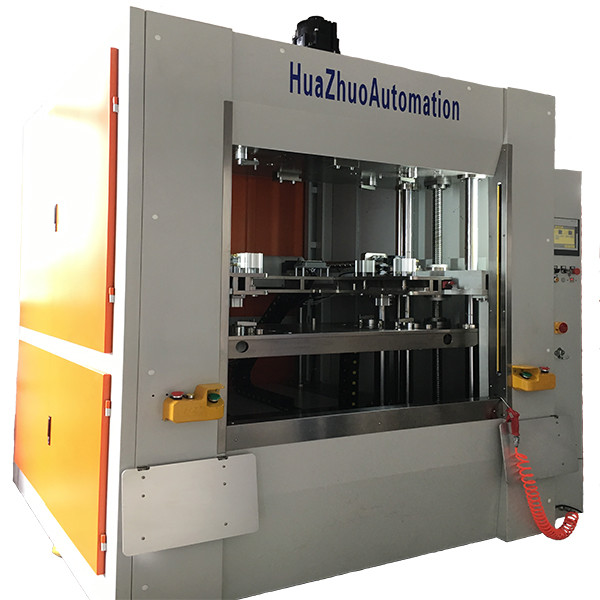

50HZ Hot Riveting Welding Machine 4KW Hot Plate Welder For Glove Boxes

Brand Name:	HuaZhuo
Model Number:	HZ-RB6550
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	45days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Suzhou China

Item Name:

6KW Servo Hot Plate Welding Machine

Voltage:

380V/Customize

Thermal Power:

3-6KW

Pressure:

0.6MPA

Welding Area:

1200mm2*900mm2

Frequency:

50/60HZ

Gas Demand:

4M3/MIN

Deminisons:

（L）1565×（W）1595×（H）2545(MM)

Application Range:

Car Light、glove Boxes、water Tanks、dust Buckets 、washing Machine Balance Rings And Home Appliance Parts

Packaging Details:

Packing by Wooden case, shipping by sea

Supply Ability:

5000/Year

Highlight:

50HZ Hot Riveting Welding Machine

Hot Riveting Welding Machine 4KW

4KW Hot Plate Welder

Product Description

6KW Servo Hot Plate Welding Machine

Product Description:

1.The upper and lower die adopts servo precision positioning, accurate to 0.01MM, hot mold servo control feed depth, accurate to 0.01MM, better control, bonding depth and overflow, to achieve better effects.

2.Welding temperature, heating time, cooling time, welding depth, pressure, transfer time and other parameters can be adjusted.

3.The moving parts use slide rails and servos to make the movement smooth and precise.

Technical Parameters:

Item Name	6KW Servo Hot Plate Welding Machine
Voltage	380V/Customize
Thermal Power	6KW
Hot Plate Advance and Retreat Process	500MM
Deminisons	(L)1565×(W)1595×(H)2545(MM)
Application Range	Car light,glove boxes,water tanks,dust buckets ,washing machine balance rings and home appliance parts
Pressure	0.6MPA
Frequency	50/60HZ
Gas Demand	4M3/MIN
Welding Area	650MM×500MM
