Pre-alignment Fixture For Automotive Trim Parts

Automotive Interior and Exterior Trim Wrapping and Edging Alignment Fixture

Product Introduction

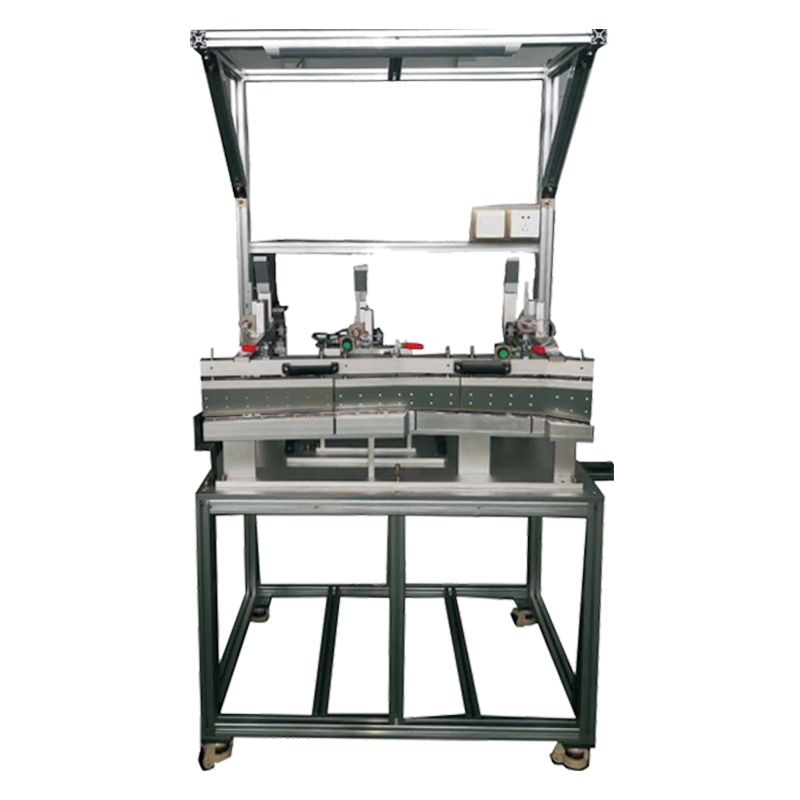

The Automotive Interior and Exterior Trim Wrapping and Edging Alignment Fixture is a manually operated alignment tool specifically designed for the wrapping process of automotive interior and exterior trim pieces. It ensures precise alignment of seams with design requirements, thereby enhancing product quality and production efficiency.

Features

a. Precision Alignment: Manually operated, utilizing positioning molds and alignment plates to ensure precise seam alignment.

b. Safety and Reliability: Equipped with manual locking devices to secure the alignment plate, preventing accidental movement during operation.

c. Ease of Operation: The alignment plate can be manually raised and lowered, and the locking mechanism allows for quick unlocking and locking, making the operation simple and easy to learn.

d. Versatility: Suitable for a wide range of automotive interior and exterior trim wrapping alignment needs, with adjustable alignment plate positions to accommodate different products.

User Guide

a. Equipment Preparation: Place the alignment fixture on a flat surface or workbench to ensure stability.

b. Product Placement: Manually flip the positioning mold to a convenient operating angle and place the product to be aligned on the mold.

c.  Alignment Operation: Unlock the locking device manually, lower the alignment plate to the seam position, and manually adjust the product position to ensure seam alignment with the plate.

d. Locking in Place: After alignment, manually lock the locking device to prevent movement during subsequent operations.

e. Product Removal: Once alignment is complete, unlock the device, raise the alignment plate, and flip the positioning mold to remove the aligned product.

Application Scenarios

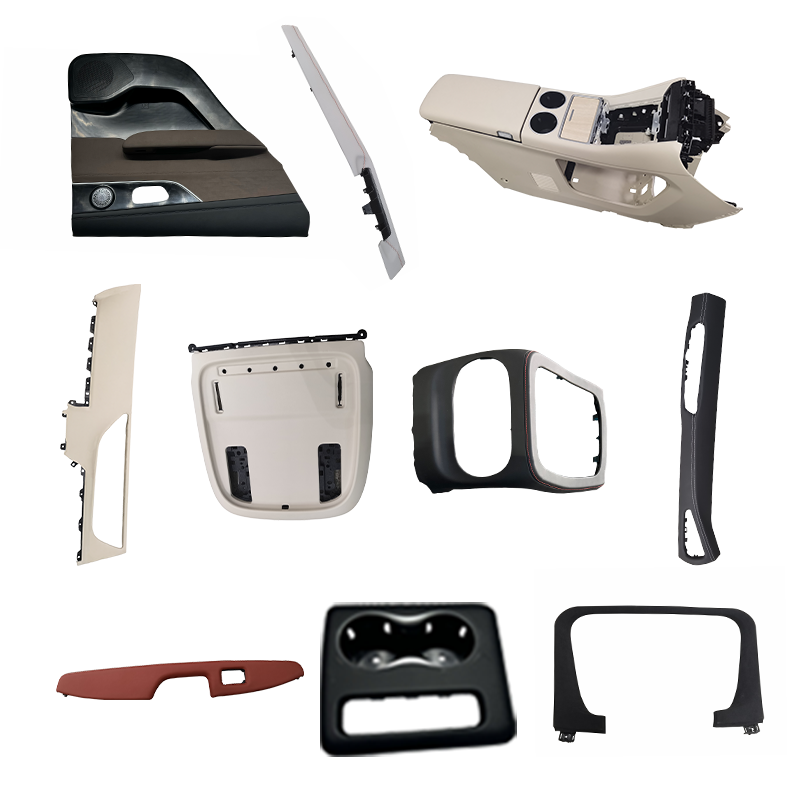

lAutomotive Interior Production: Suitable for wrapping alignment of automotive seats, dashboards, door trims, and other interior components.

lAutomotive Exterior Production: Can be used for wrapping alignment of exterior components such as body trim strips.
