Name: 220V Plastic Pallet Machine 16KW Pallet Manufacturing For Anti Slip Plastic
Brand: Suzhou Huazhuo automation equipment Co., Ltd
SKU: HZ-ZBFB
Availability: InStock

220V Plastic Pallet Machine 16KW Pallet Manufacturing For Anti Slip Plastic

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Item Name: 220V Plastic Pallet Hot Plate Welding Machine

Voltage: 220V/Customize

Gas Demand: 4m3/MIN

Advantage: High Speed Stability

Weight: 4.0T

Heating Power: 16KW

Pressure: 0.6MPa

Ambient Temperature: -5℃-35℃

Deminisons: L6150mm×W4075mm×H2505mm

Application Range: Anti Slip Plastic Pallet Soldering

Highlight:

Plastic Pallet Machine 16KW

220V Plastic Pallet Machine

16KW Pallet Manufacturing Machine

Basic Infomation

Place of Origin: Suzhou China

Brand Name: HuaZhuo

Model Number: HZ-ZBFB

Payment & Shipping Terms

Packaging Details: Packing by Wooden case，Shipping by sea

Delivery Time: 45days

Payment Terms: T/T, L/C

Supply Ability: 5000/Year

Gallery

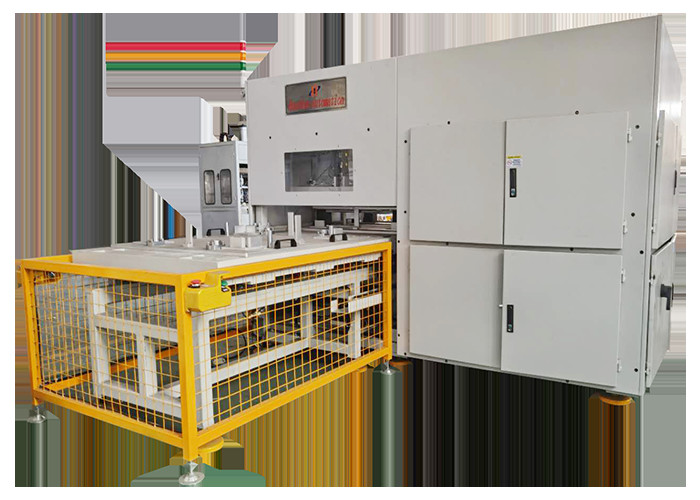

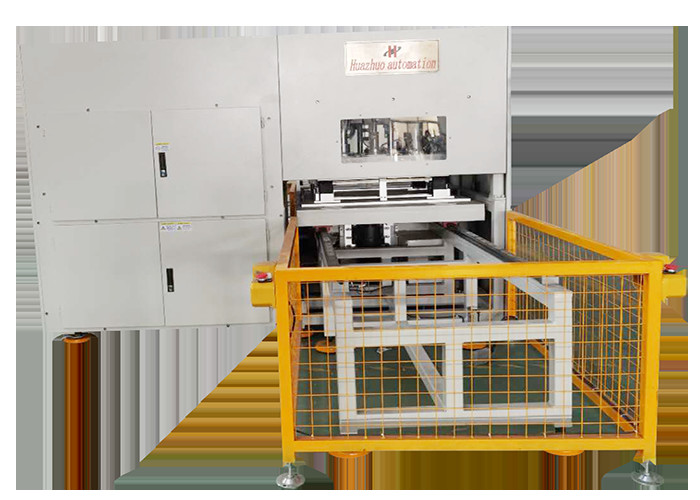

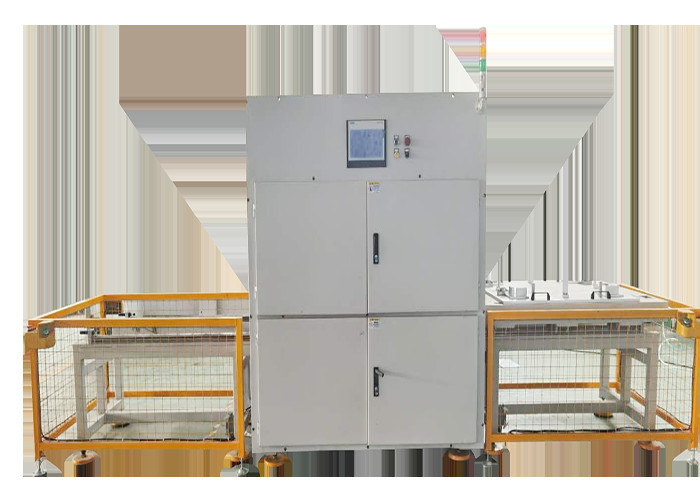

220V Plastic Pallet Machine 16KW Pallet Manufacturing For Anti Slip Plastic

Product Description

220V Plastic Pallet Hot Plate Welding Machine

Product Description:

1. The Plastic pallet hot plate welding machine is instant and efficient. The process is simple and yields high productivity.

2. The workpiece is moved to the welding position through the roller and fixed by clamping.

3. The upper mold has the function of automatic deviation correction, and can realize the function of automatic clamping and adsorption at the same time.

4. The heating of hot plate is divided into heating hot plate and infrared radiation heating.

5. The pallet can realize two operation modes: single machine welding and assembly line welding.

Technical Parameters:

Item Name	220V Plastic Pallet Hot Plate Welding Machine
Voltage	220V/Customize
Application Range	Anti Slip Plastic Pallet Soldering
Gas Demand	4m3/MIN
Weight	4.0T
Deminisons	L6150mm×W4075mm×H2505mm
Power	24KW
Heating Power	16KW
Pressure	0.6MPa
Ambient Temperature	-5℃-35℃

Application Range:

Plastics/electrics/electronic appliances/auto parts/packaging/environmental protection/medical

insrtuments/non-woven cloth/communication equipments etc.

After-sales Service Provided:

1.One-year warranty service

2.Online support, Video technical support
