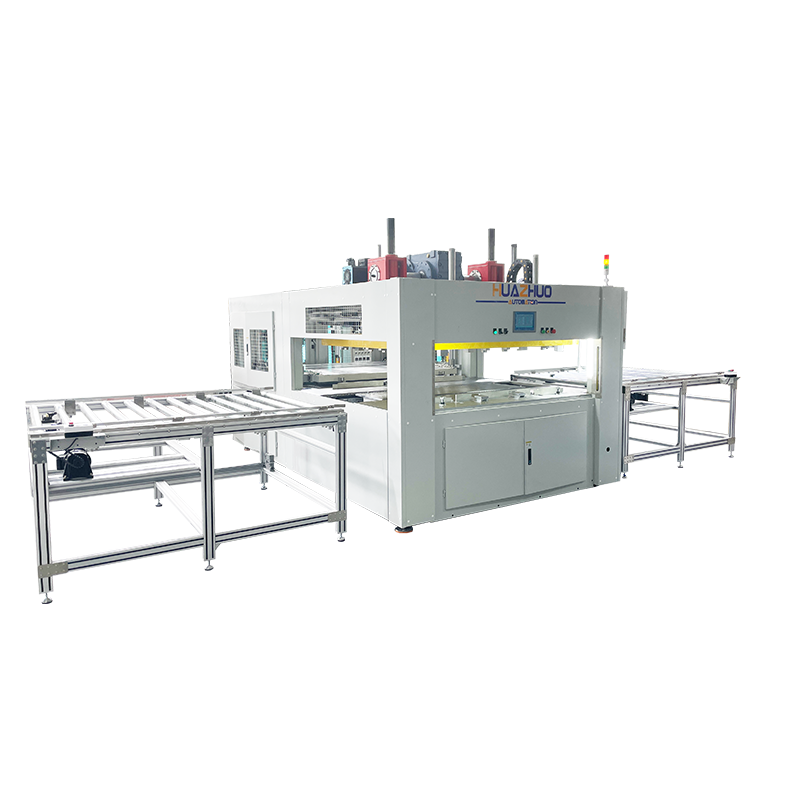

Customized Hydraulic Driven Hot-Plate Automatic Welding Machine For Plastic Pallets

Customized Hydraulic Hot-Plate Automatic Welding Machine for Plastic Pallets

Product Overview

Huazhuo's Customized Hot-Plate Automatic Welding Machine is meticulously designed for high-precision welding solutions for plastic pallets. The machine offers the option of hydraulic or servo-driven systems, with customizable feeding methods and cycle times to meet diverse production needs. Equipped with advanced control systems, modular design, and customizable features, it ensures consistent, high-quality welding results and seamless integration into modern manufacturing lines.

Product Features

1. Customizable Drive Options

Hydraulic Drive: Provides robust power and reliability, suitable for heavy-duty applications.

Servo Drive: Offers precise control and energy efficiency, ideal for high-precision welding tasks.

2. Precision Welding

Optimized for plastic-to-plastic welding with a positional accuracy of ±0.1mm.

Compatible materials: Thermoplastics such as Polypropylene (PP), Polyethylene (PE), Acrylonitrile Butadiene Styrene (ABS), Polycarbonate+ABS (PC+ABS), Polyamide 6 (PA6), etc.

3. High Production Efficiency & Traceability

Integrated force and depth sensors for real-time monitoring.

Vision-assisted positioning and melt detection for accurate welding.

Error-proofing (Poka-Yoke) ensures a zero-defect workflow.

4. Flexible Tooling System

Customized mold sizes based on product data.

Optional tooling cooling for thermally sensitive parts.

The machine can handle pallets of different sizes, saving cost and space.

Specific operations include:

For minor size variations, pallet stops and cylinder clamps can be adjusted for positioning.

For significant size changes, pallet fixtures are used, and the fixture is replaced during changeover.

5. Smart Control & Connectivity

Siemens/Mitsubishi PLC HMI with intuitive operation.

Data outputs: Weld profile, Overall Equipment Effectiveness (OEE), alarm history, preventive alerts.

Remote monitoring and diagnostic capabilities.

Application Scenarios

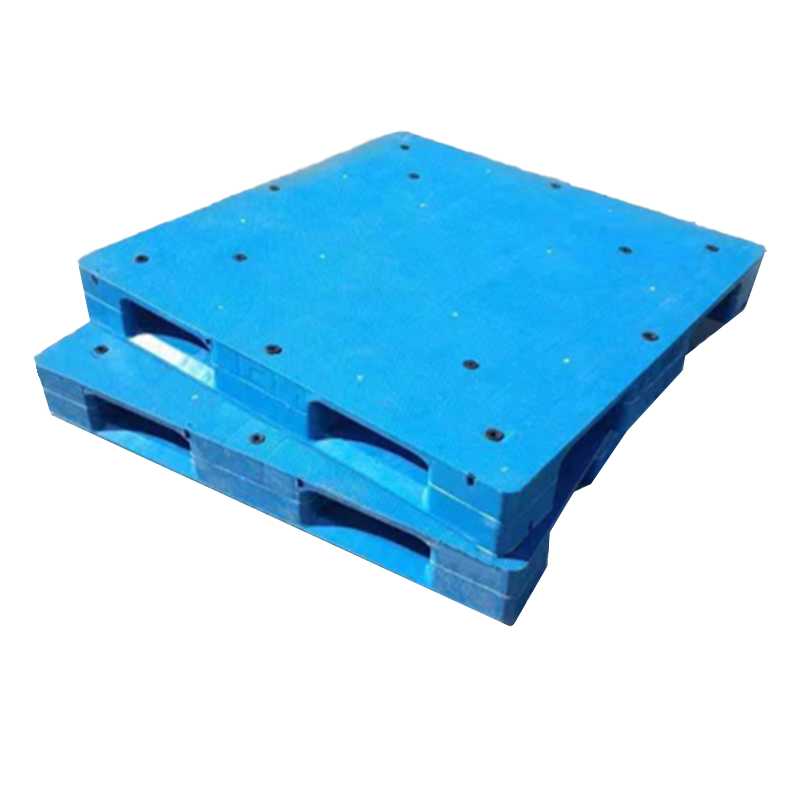

Designed specifically for the automated welding of plastic pallets.

The hot-plate welding machine is primarily used for surface-to-surface welding, connecting two components by heating the contact surfaces. It is widely used in the manufacturing of plastic components in industries such as logistics, packaging, and automotive interiors. For applications requiring point-to-point welding, such as automotive door speaker grilles, a hot-riveting machine is recommended.

Technical Specifications

Machine Name: Hydraulic Hot-Plate Welding Machine for Plastic Pallets

Main Power Supply: Three-phase ~380V/50Hz

Air Supply: Dried air source above 0.5Mpa

Air Hose: Φ12mm (outer diameter) * Φ10mm (inner diameter)

Power Consumption: 80KW

Welding Cycle Time (excluding loading/unloading): 45-50 seconds per cycle

Machine/Mold Size: Customizable

Safety Protection: Light curtains, interlocks, emergency stop button

Why Choose Huazhuo?

Over 13 Years of Expertise: Specializing in plastic welding automation.

20,000m² Factory: Located in Suzhou, China, with in-house machining and assembly capabilities.

Global References: Trusted by automotive OEMs and Tier-1 suppliers worldwide.

Fully Customized Machines: Tailored to fit specific part geometries and production requirements.

After-Sales & Support

1-Year Quality Warranty: Comprehensive coverage for peace of mind.

Remote Support: Quick problem-solving via video, software, and diagnostic functions.

On-site Installation & Training: Optional services to ensure smooth setup and operation.

Spare Parts & Tooling: Fast delivery of replacement parts to minimize downtime.

Customization Options

Drive System:Hydraulic Drive / Servo Drive

Material Handling:

Roll Feed System: Suitable for continuous production with minimal operator intervention.

Reciprocating Feed System: Ideal for applications requiring precise positioning and control.

Additional Features:

Customized mold design based on product specifications.

Optional cooling system for thermally sensitive materials.

Seamless integration with existing production lines for easy operation.

Conclusion

Huazhuo's Customized Hot-Plate Automatic Welding Machine for Plastic Pallets offers unparalleled flexibility and precision, making it the ideal choice for manufacturers seeking high-quality, efficient, and reliable welding solutions. With customizable drive systems, material handling options, and advanced control features, this machine is designed to meet the unique needs of your production environment. Choose Huazhuo for a machine that delivers exceptional performance and value.
